ENVO SnowBike

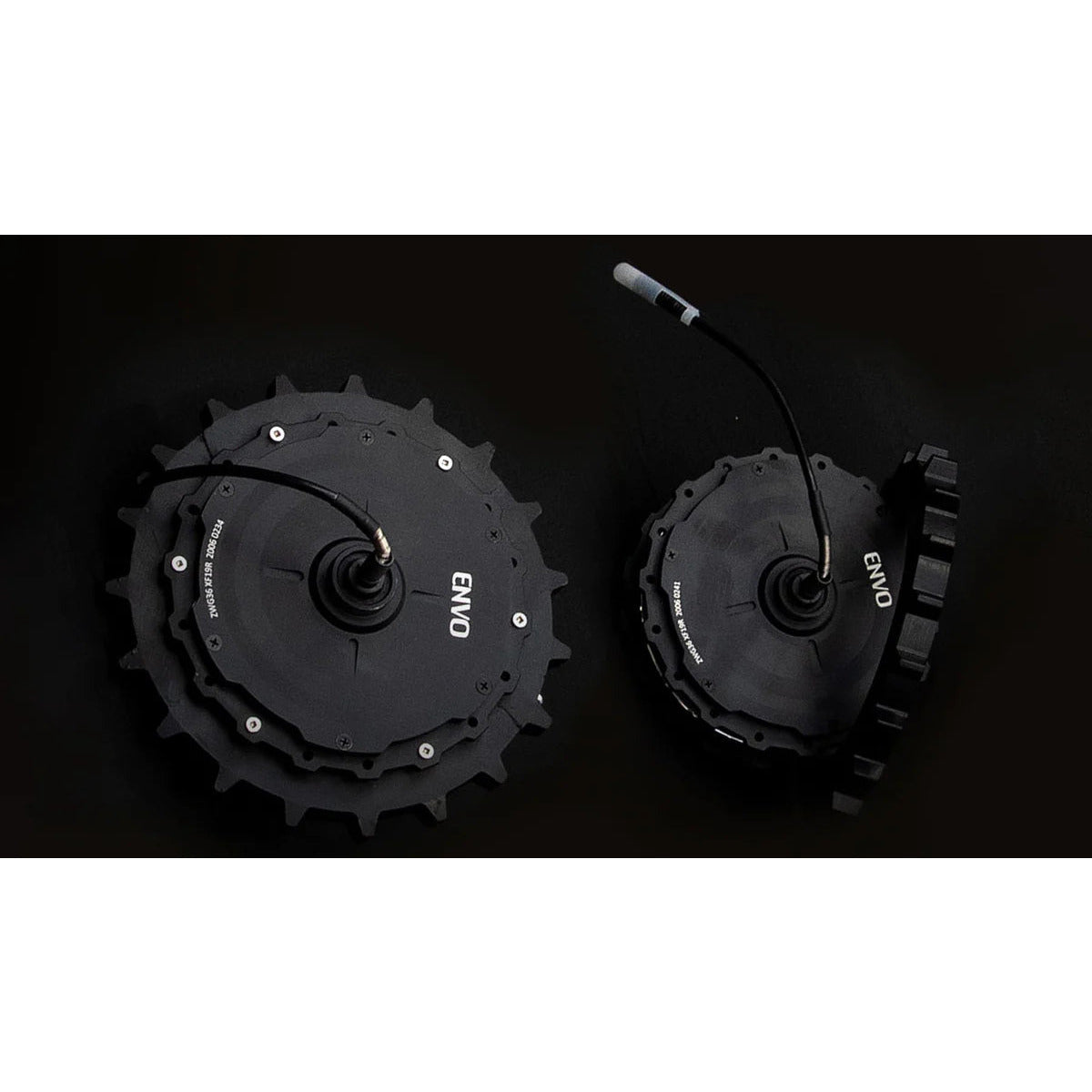

Motor:
750W Rated (1200W Max.) Geared Motor
1200W using 48V 25A controller, hub motor, small size with simple structure, lightweight and long life, superpower, high efficiency, beautiful, high-speed motor with gear, the drive is very free and fluent, the best choice for Li-ion battery on an e-bike for the rough road, higher weights and higher grade-ability.
Motor Type: DC Brushless Geared Hub Motor
Motor Power: 750W /1200W
Motor Voltage: 48V
Motor Max Torque: 120Nm @25A
Motor Efficiency: ≥80%
Sun-planetary reduction gears with regenerative braking option
36 Spokes, Flange for disc brake, Waterproof connector
Axle=135 mm, Diameter=177 mm
Weight= 4 kg
The phase angle of 120 degree

Motor Manufacturer: MXUS Waterproof and protection grade: IP54 Noise level 55 dB CE, EN15194 certifications

Motor Controller: Brushless Motor Controller

Display Computer: LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands. Trip time display (with displays of a single trip time (TM) and total trip time (TTM)); Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS)); Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO)); Display of turned on the handlebar; Display of power-assist startup; 6Km/H power assistant push function; Cruise function (CRUISE); Battery capacity indicator; Real-time battery voltage (VOL) display; Motor power and temperature (MOTOR) display; Brake display; Turn on backlighting and lights; Environment temperature display; Data clearing; Fault code display; User parameter setting 5′ large screen Rubber clamp spacer is provided for 3 handlebars bore sizes: 22.5mm, 25.4mm, 31.5mm Easy key button, easy control, Waterproof housing with good appearance

Battery:
The Lizard battery is a battery you can mount on a frame tube using special clamp nuts. The battery can be locked to its support or un-lock and slide out to remove.
Li-Ion 48V  17.5Ah
Battery energy: 840Wh
Battery max power: 1700W
Standard recharge time 8 hours

Battery Pack Specification:
PVC covered 18650Cells and BMS pack
SANYO GA 3500
Charging Model CC/CV
Charge Temperature 0-45 °C
Discharge Temperature -20-55 °C

Battery Charger Voltage:
54.6V
4.5 kg

Battery dimensions:
370 x 110 x 90 mm

Material:Wheel A356 Aluminum, Magnet 38SH, Wire(winding) QZ-3/155, Iron core DW470, Bearing C&UBlack glove box not included

Motor Voltage: 48V Min Voltage: 42+-0.5V Max Current: 25+-1A Speed Set: 1-4.2V Angle: 120 Brake Input: Low-Level

Brake cut-off magnetic switches:Just stick the magnet sensors, no need to disassemble the brake levers. It cuts-off the motor when you brake. Electric regenerative braking

Thumb Throttle: Haul effect sensor, Analogue linear increasing torque

Other: Rainproof Controller and tools bag

Seat Tube Length
The seat tube height should be adjusted as such that while pedaling your leg should not be fully extended at the bottom of the pedal, and your leg should not push against your body on the upswing

Effective Top Tube Length
The effective top tube length impacts your reach, if the top tube length is too long your body will be stretched and that may cause back pain and if the length is too short you may find it difficult to handle the bicycle. Our products feature an adjustable handlebar stem which lets the rider do the ergonomic fine-tuning.

Standover Height
For a comfortable experience, there must always be at least an inch or so space between you and the top tube on your bike when you are standing flat-footed. You can measure your inseam length and check that value against the table provided below.

ENVO SnowBike User Manual (Click to View or Download)
